Description
This software includes all of the parts needed to complete an installation on a Gaggia Classic or Gaggia Classic PRO / E24.
Comes fully Plug&Play ready and pre-programmed with the Gaggiuino software

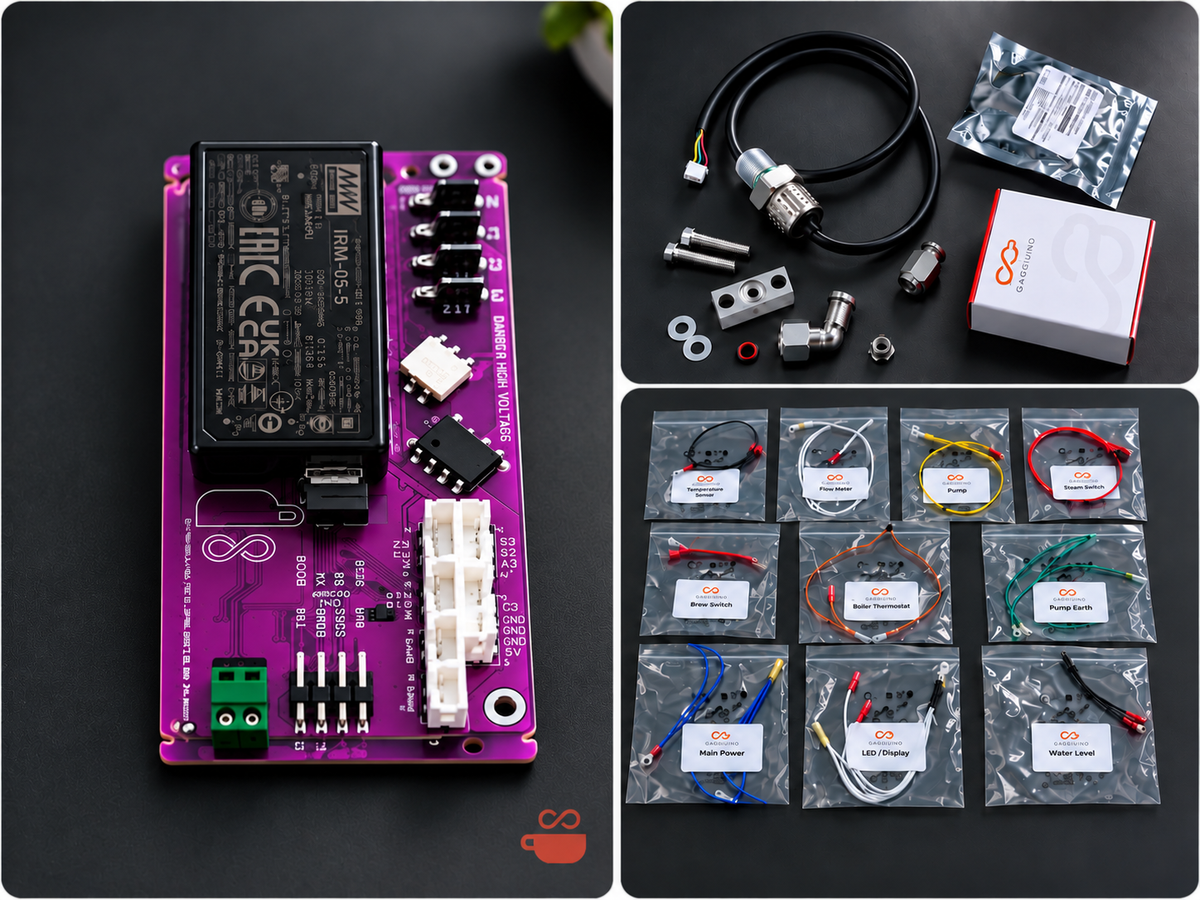

What's included
- Gaggiuno firmware
- Official Gaggiuino PCB V4.0

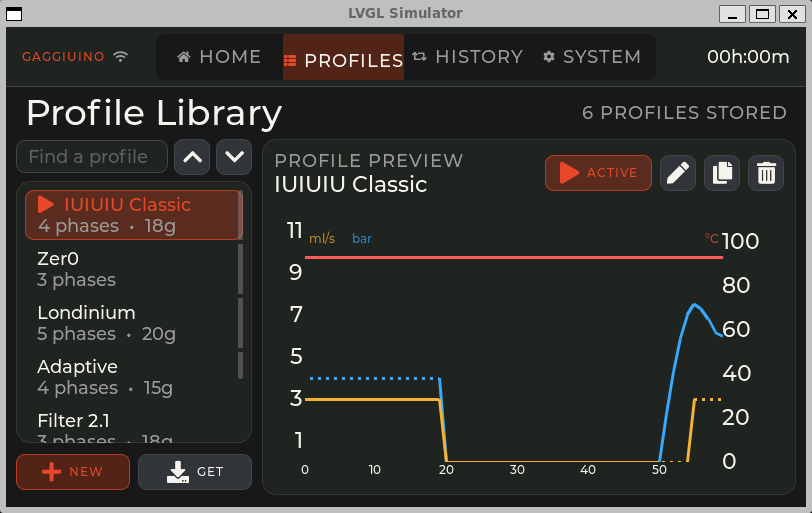

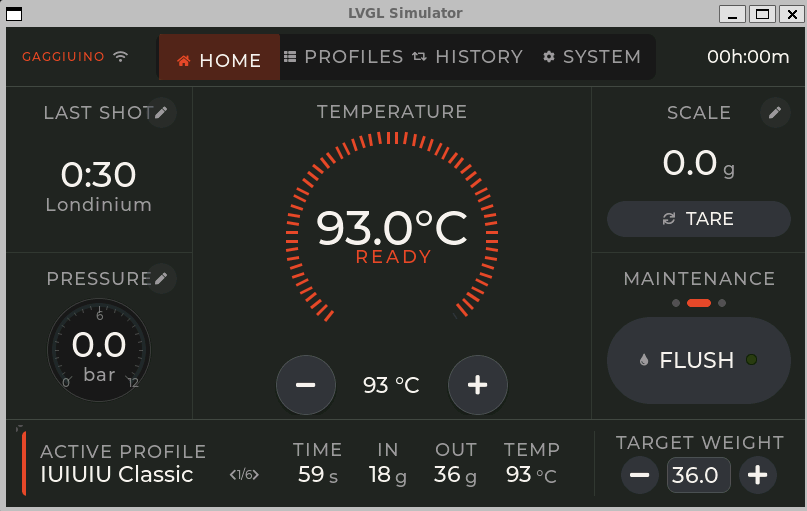

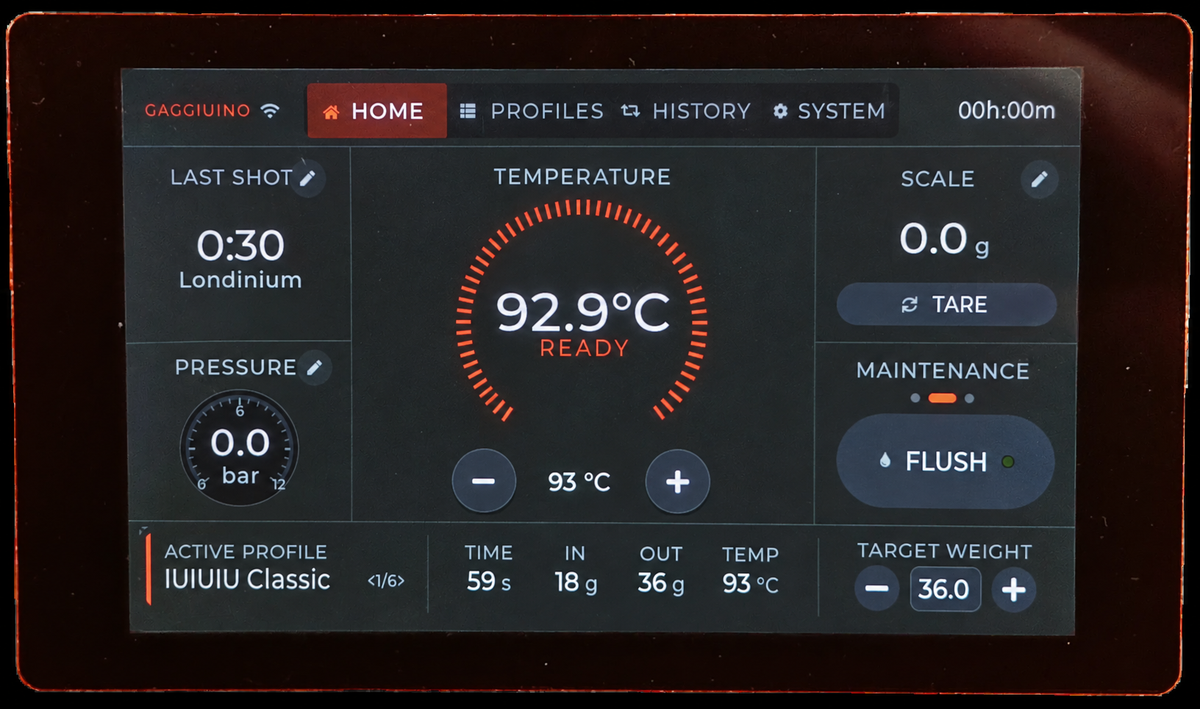

- 4.3″Touchscreen (Updated)
- Low voltage harness
- High voltage harness
- Pressure Sensor
- Thermocouple K M4
- SSR 40DA
- STLink v2 (weact)
- 1 × CNC Pressure tap block
- 1 × Pressure sensor fitting
- 1 × M5 pressure block fitting
- 1 × 8CM PTFE Pipe (enough for 2 attempts)
- 2 × Pressure block o-rings (red)
- 2 × Pressure sensor o-rings (white)
- 2 × M5x25 Stainless socket head screws
Installation resources can be found HERE.
3D printed parts not included. Those can be purchased separately from Espressio(EU) or Hudson Creative(USA) additionally can be self-printed.
Please reach out on Discord for additional information or install help.
